Air Pressure sensor 10100516201
Air Pressure sensor 10100516201
Air Pressure sensor 10100516201
Air Pressure sensor 10100516201
Air Pressure sensor 10100516201

Air Pressure sensor 10100516201

Air Pressure sensor 10100516201 0-2Mpa 5-5.5V transducer

Air Pressure sensor 10100516201

选择规格数量

请勾选您要的商品信息！

Product Detail

Technical Specifications:

  1. Nominal Pressure: 0–1.47 MPa, Maximum Overload: 2.0 MPa (lasting 1 min), Burst Pressure ≥ 3 MPa.
  2. Output Voltage: With power supply voltage of 5–5.5 V, proportional output ranging from 10% VCC to 90% VCC; with other supply voltages, output range is 0.5–4.5 V.
  3. Power Supply Voltage: 5 ± 0.25 V, with reverse connection protection and overvoltage protection up to 28 Vmax.
  4. Maximum Input Current: 8 mA.
  5. Input-Output Characteristic: U(V) = 2.721P + 0.5, where P is the input pressure in MPa (refer to the characteristic table and output curve).
  6. Operating Temperature: –40°C to 125°C, Storage Temperature: –40°C to 150°C.
  7. Output Error:
  8. Long-term Stability: ≤ ±1.6% FS/year.
  9. Insulation Performance: ≥ 100 MΩ @ 500 VDC.
  10. Response Time: ≤ 3 ms Max.
  11. Vibration Compliance: Meets QC/T822-2009 'Engine Lubricating Oil Pressure Sensor for Automotive Vehicles,' Section 3.10.
  12. Service Life: Not less than 1 × 10⁶ pressure-temperature cycles.
  13. Housing Material: 08# steel, with zinc plating, compliant with QC/T625-2013 Fe/Zn18CF.
  14. Pin Material: H62 brass, with tin plating, compliant with QC/T625-2013 Cu/Ni2Sn5.




  19. Protection Rating: Overall IP65 (including connector).

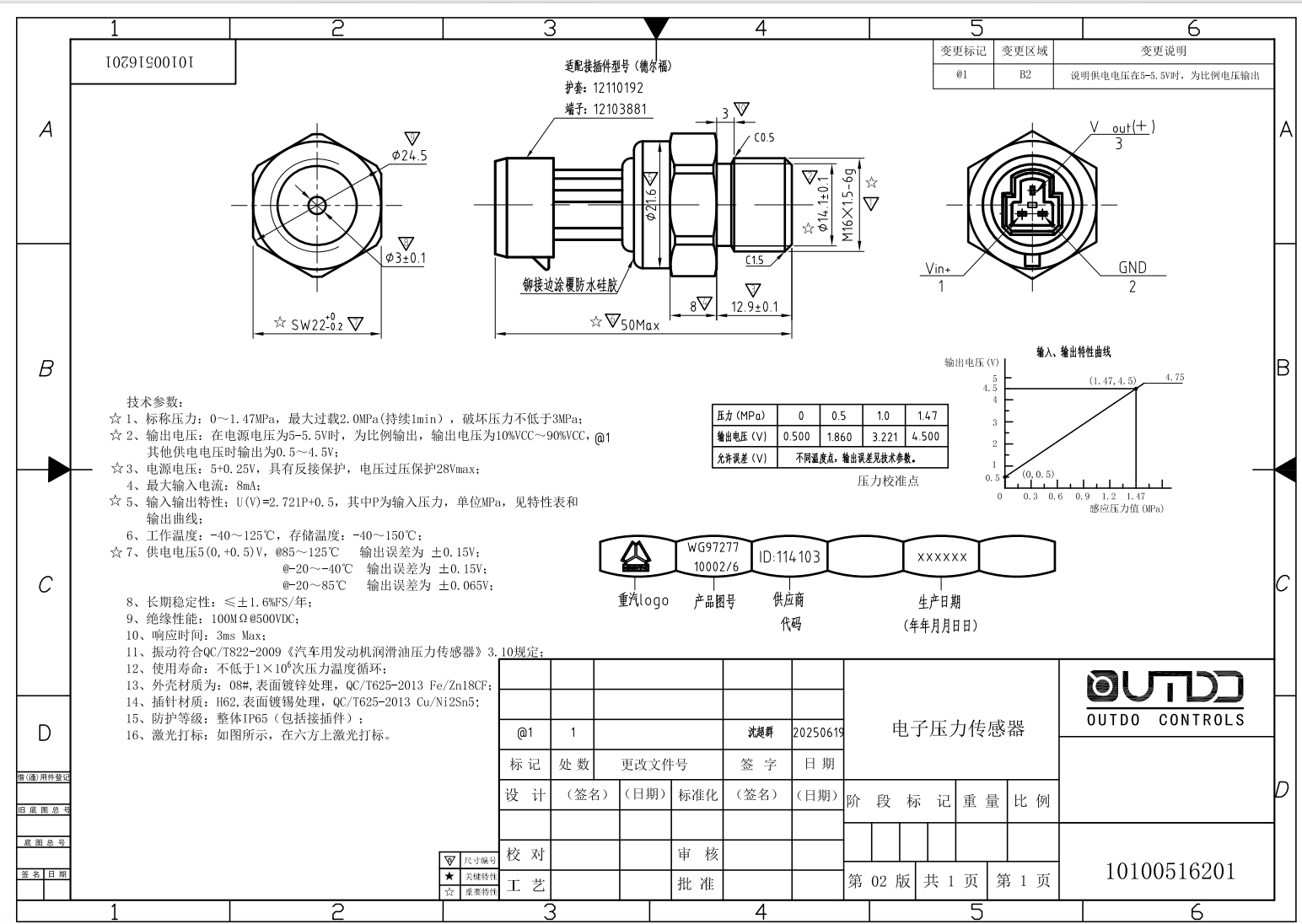

  20. Laser Marking: As shown in the drawing, laser marked on the hex surface.
