Product
Product Detail

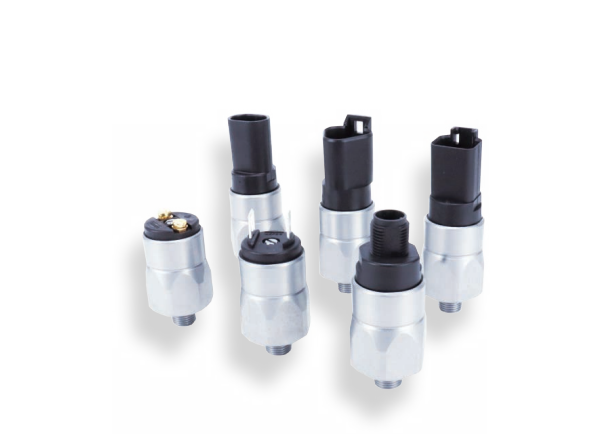

Adjustable High Pressure Switches

Name: Adjustable High Pressure Switches
Rating: 4.8 (87 reviews)

Adjustable High Pressure Switches 30-200bar stainless pressure for industry and auto field
Range: 30-200 bar
Body Material: Galvanized Steel / Stainless Steel
Electrical Contacts: Silver Cadmium, Gold Plating Optional
Maximum Voltage: 42V DC / 100V AC
Maximum Current: 4A
Operating Temperature: -40℃ to 100℃ (depending on diaphragm)
Contact Configuration: Normally Open, Normally Closed
Maximum Operating Pressure: 450 bar
Application Scenarios: Industrial and Automotive Fields

Select the number of specifications

Please check the product information you want!

Product Detail

Features

■ 1 million mechanical life and high reliability

■ Short action time and high sensitivity

■ High pressure resistance and high safety

■ With metal shell design, the switch is more resistant to vibration and external impact

■ Pressure value can be adjusted

■ More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability

Applications

■ Construction machinery,such as excavators

■ Forklifttruck (oil burning type with hydraulic system)

■ Hydraulic system,such as hydraulic lubrication pump and hydraulic pump station

No comment

Previous : Absolute Pressure Transmitter with Display OTD460 Next : Pressure sensor OTD11

Product Detail

Features

■ 1 million mechanical life and high reliability

■ Short action time and high sensitivity

■ High pressure resistance and high safety

■ With metal shell design, the switch is more resistant to vibration and external impact

■ Pressure value can be adjusted

■ More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability

Applications

■ Construction machinery,such as excavators

■ Forklifttruck (oil burning type with hydraulic system)

■ Hydraulic system,such as hydraulic lubrication pump and hydraulic pump station
