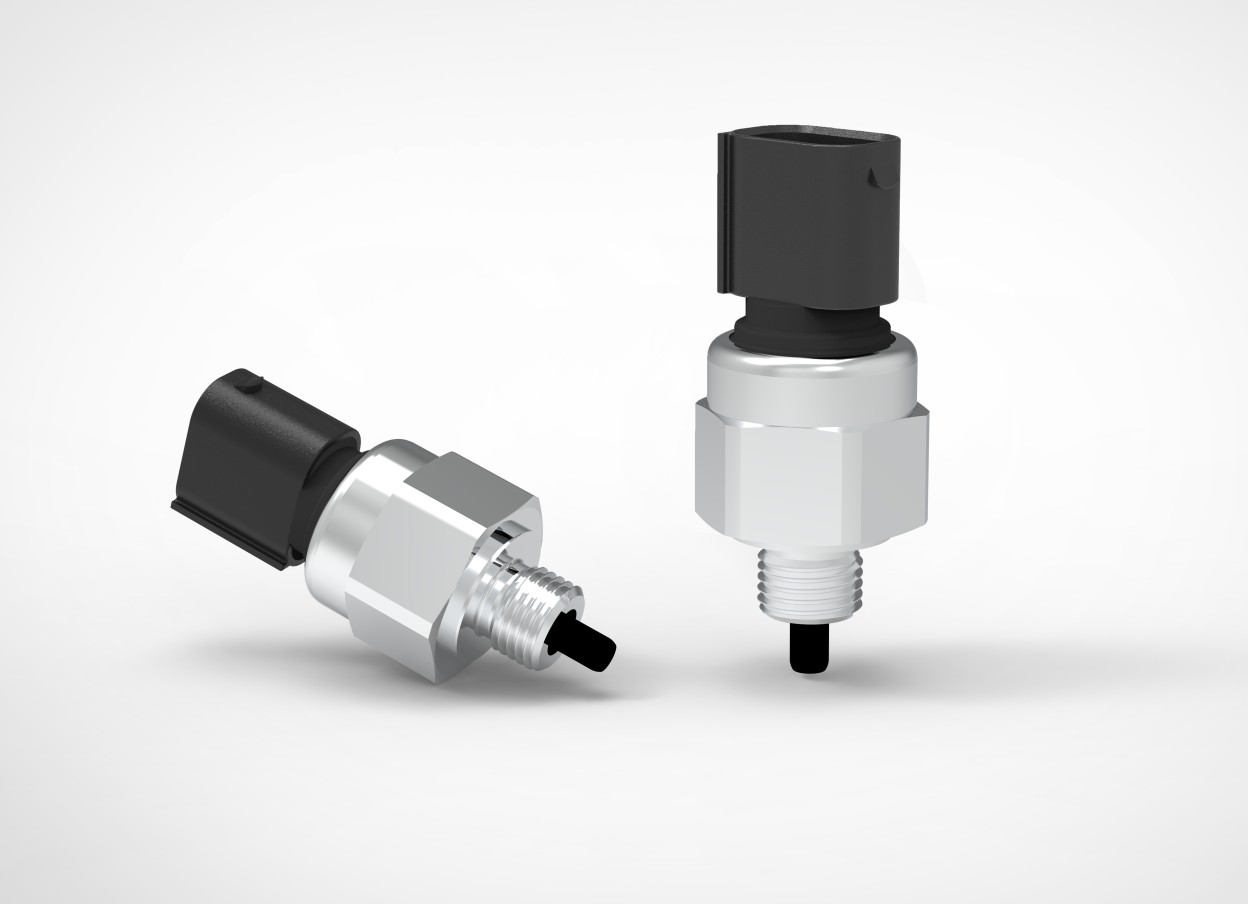

Temperature pressure sensor 10100515713
Temperature pressure sensor 10100515713
Temperature pressure sensor 10100515713

Temperature pressure sensor 10100515713

Temperature pressure sensor 10100515713 MEMS 0.5V-4.5V

Temperature pressure sensor 10100515713

Select the number of specifications

Please check the product information you want!

Product Detail

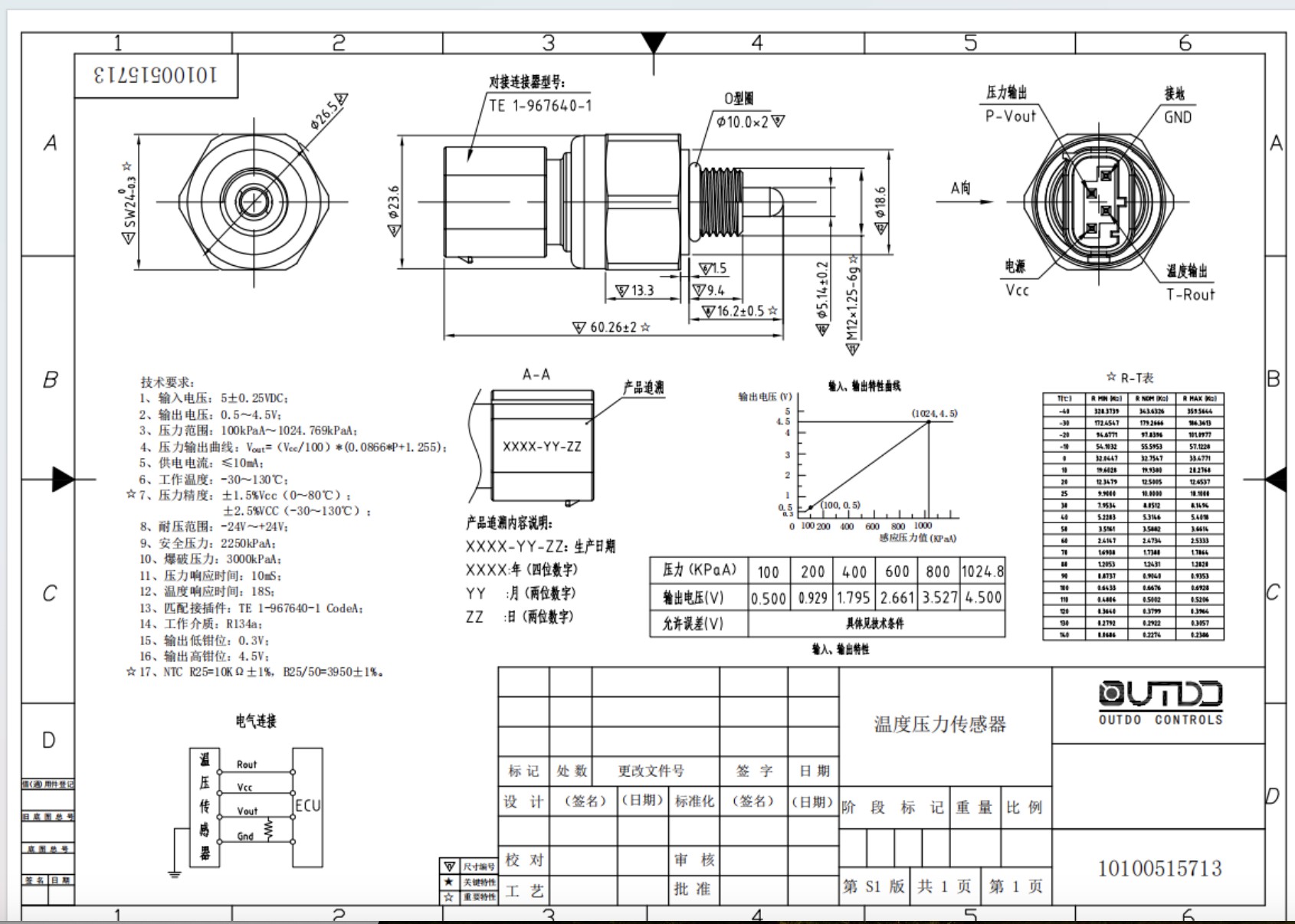

Technical Requirements:

  1. Input Voltage: 5±0.25 VDC
  2. Output Voltage: 0.5–4.5 V
  3. Pressure Range: 100 kPaA–1024.769 kPaA
  4. Pressure Output Curve: Vout = (Vcc/100) × (0.0866 × P + 1.255)
  5. Supply Current: ≤10 mA
  6. Operating Temperature: -30°C to +130°C
    ☆ 7. Pressure Accuracy: ±1.5% Vcc (0–80°C); ±2.5% Vcc (-30–130°C)
  7. Withstand Voltage Range: -24 V to +24 V
  8. Safe Pressure: 2250 kPaA
  9. Burst Pressure: 3000 kPaA
  10. Pressure Response Time: 10 ms
  11. Temperature Response Time: 18 s
  12. Compatible Connector: TE1-967640-1 Code A
  13. Working Medium: R134a
  14. Output Low Clamp: 0.3 V
  15. Output High Clamp: 4.5 V
    NTC: R25 = 10 kΩ ±1%, B25/50 = 3950 ±1%


No comment

Previous : Oil pressure sensor  13537537319 fit for BMW Next : Preassure sensor 10100517105
Product Detail

Technical Requirements:

  1. Input Voltage: 5±0.25 VDC
  2. Output Voltage: 0.5–4.5 V
  3. Pressure Range: 100 kPaA–1024.769 kPaA
  4. Pressure Output Curve: Vout = (Vcc/100) × (0.0866 × P + 1.255)
  5. Supply Current: ≤10 mA
  6. Operating Temperature: -30°C to +130°C
    ☆ 7. Pressure Accuracy: ±1.5% Vcc (0–80°C); ±2.5% Vcc (-30–130°C)
  7. Withstand Voltage Range: -24 V to +24 V
  8. Safe Pressure: 2250 kPaA
  9. Burst Pressure: 3000 kPaA
  10. Pressure Response Time: 10 ms
  11. Temperature Response Time: 18 s
  12. Compatible Connector: TE1-967640-1 Code A
  13. Working Medium: R134a
  14. Output Low Clamp: 0.3 V
  15. Output High Clamp: 4.5 V
    NTC: R25 = 10 kΩ ±1%, B25/50 = 3950 ±1%
