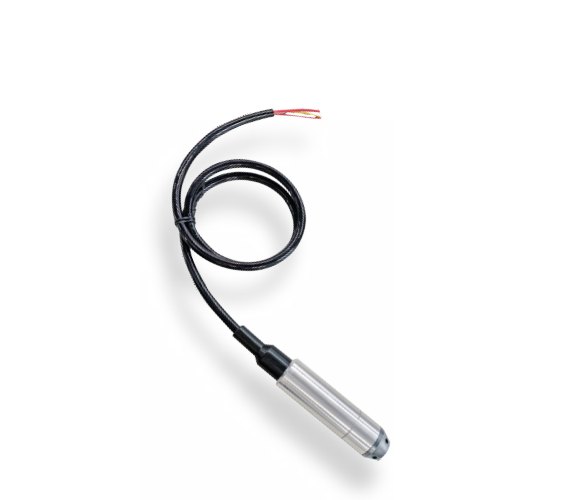

Submersible Level Transmitter OTD260H
Submersible Level Transmitter OTD260H

Submersible Level Transmitter OTD260H

Pressure Type: Gauge Pressure
Range: 0–1 mH₂O…20 mH₂O
Supply & Output: 4–20 mA (9–30 VDC)
Accuracy: ±0.5% FS (@25°C)
Operating Temperature: –10°C to 70°C
Temperature Drift:
 35 kPa range: ±3% FS (@0–60°C)
 Other ranges: ±1.5% FS (@–10–70°C)
Housing Material: Stainless Steel 304
Sensor Material: Stainless Steel 316L

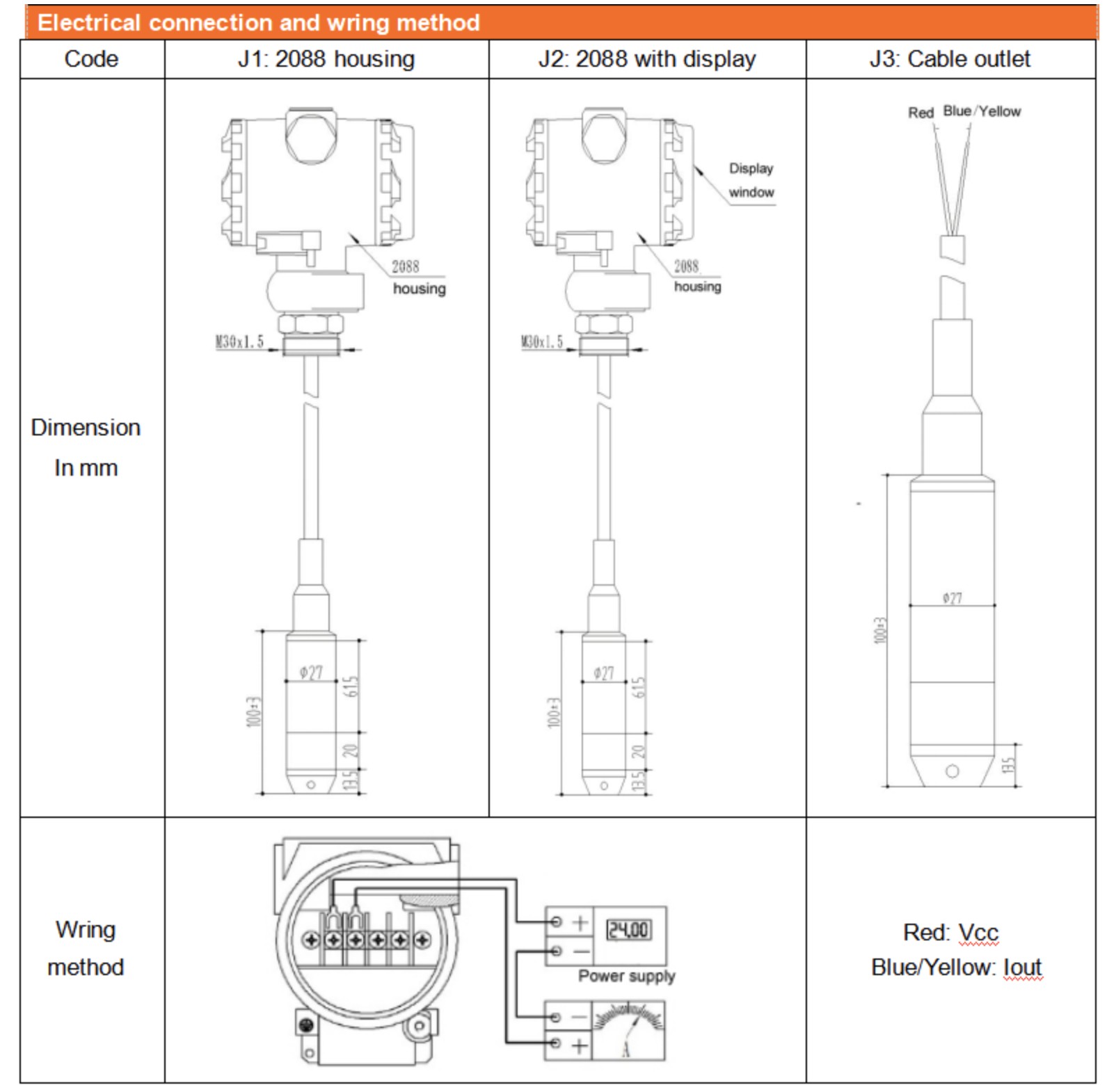

Electrical Connection: Direct Cable
Protection Rating: IP68

Submersible Level Transmitter OTD260H

Select the number of specifications

Please check the product information you want!

Product Detail

Features

■ Diffuse piezoresistive silicon sensor adopted

■ Probe insertion measurement mode, simple and convenient installation

■ For level measurement

■ High accuracy, all stainless steel structure

■ Small size and light weight

■ Strong anti-interference, good  long-term stability

■ Anti-vibration, shock resistance

Applications and industries

■ Water level measurement in rivers and lakes

■ Level measurement of containers and storage systems

■ Sewage lift pump and pumping station control

■ Sewage, sediment and flood drainage system monitoring


No comment

Previous : Non-cavity Flush Pressure Transmitter sensor OTD340 Next : Smart Submersible Level Sensor transmitter
Product Detail

Features

■ Diffuse piezoresistive silicon sensor adopted

■ Probe insertion measurement mode, simple and convenient installation

■ For level measurement

■ High accuracy, all stainless steel structure

■ Small size and light weight

■ Strong anti-interference, good  long-term stability

■ Anti-vibration, shock resistance

Applications and industries

■ Water level measurement in rivers and lakes

■ Level measurement of containers and storage systems

■ Sewage lift pump and pumping station control

■ Sewage, sediment and flood drainage system monitoring


Submersible Level Transmitter OTD260H
Pressure Type: Gauge Pressure
Range: 0–1 mH₂O…20 mH₂O
Supply & Output: 4–20 mA (9–30 VDC)
Accuracy: ±0.5% FS (@25°C)
Operating Temperature: –10°C to 70°C
Temperature Drift:
 35 kPa range: ±3% FS (@0–60°C)
 Other ranges: ±1.5% FS (@–10–70°C)
Housing Material: Stainless Steel 304
Sensor Material: Stainless Steel 316L
Electrical Connection: Direct Cable
Protection Rating: IP68
